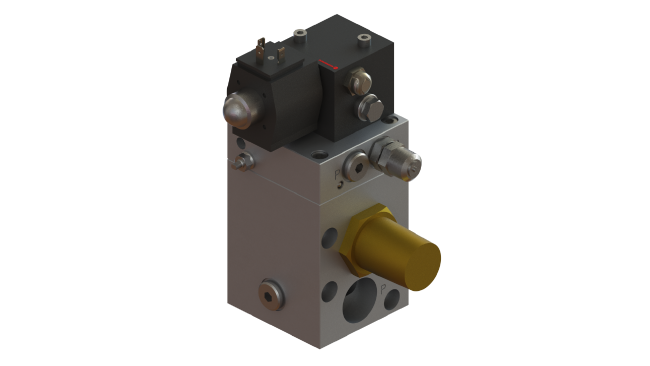

Booster Relay with integrated quick open or close function.

Technical features
  • Suitable for double acting (DA) and single acting (SA) actuator
  • Quick openor close and or hold function integrated
  • Mounting options are pipe or directly to the UniteQ UGP manifold
  • Linearity within ± 1% / Hysteresis within ± 1%, Pressure ratio 1:1
  • SIL2 certified according to IEC 61508
  • Operation pressure 0…10 bar (0…145psi)
  • Operation temperature -25°C -13°F / +70°C +158°F
  • Supplied medium air, filtered non-lubricated and dry
  • Equipped with prepared lock-up valve connection (P/P1)
  • ATEX (Exd or implementation suitable
  • To help accelerate actuation speed considerably
  • Boost and quick O/C (1x NC "MV1")
« Back to Pneumatic control manifolds UGP1 G1 range

Datasheet UGP100053
