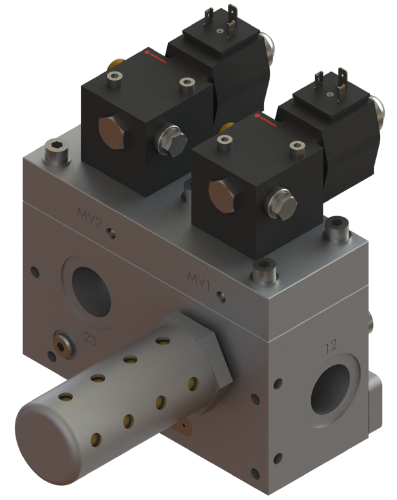

Pneumatic manifold G1-MO 2xNC-O/C 1xNC, modulating and quick open/close function for actuator with spring

Technical features
  • Suitable for single acting (SA) actuator
  • Fail safe open/close function (1x NC, power/signal loss)
  • Open close (O/C 1x NC) function
  • Modulating (MO 2x NC) function
  • SIL2 certified according to IEC 61508
  • Open close function (O/C 1x NC)
  • Internal connection prepared for lock-up function
  • Operation pressure 0…10 bar (0…145psi)
  • Operation temperature -25°C -13°F / +70°C +158°F
  • Supplied medium air, filtered non-lubricated and dry
  • Equipped with prepared lock-up valve connection (P/P1)
  • ATEX implementation suitable
  • Modulating (MO) and open/close (O/C)
  • 2x normally closed (NC) for modulating
  • 1x normally closed (NC) for open/close

« Back to Pneumatic control manifolds UGP1 G1 range

Data sheet UGP100063
