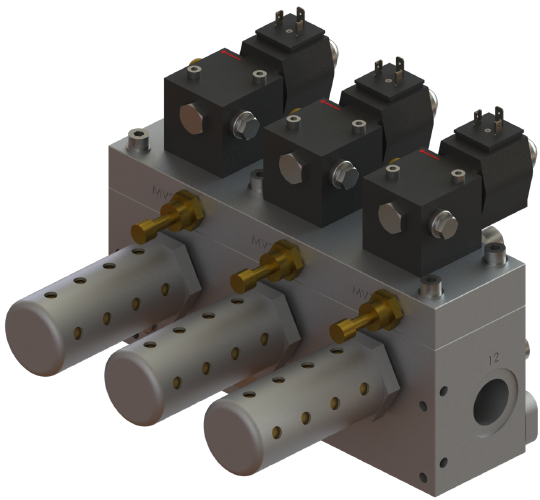

Pneumatic manifold G1-1oo3-MO 3xNC, 1oo3 configuration and suitable for EN1295-10 (TRD421) certification

Technical features
  • Suitable for single acting (SA) actuator
  • Fail safe open/close function, 1oo3 (3x NC, power/signal loss)
  • Modulating MO or open close O/C (3x NC) function
  • SIL3 certified according to IEC 61508
  • Suitable for EN1295-10 (TRD421)
  • Internal connection prepared for lock-up function
  • Operation pressure 0…10 bar (0…145psi)
  • Operation temperature -25°C -13°F / +70°C +158°F
  • Supplied medium air, filtered non-lubricated and dry
  • Equipped with prepared lock-up valve connection (P/P1)
  • ATEX implementation suitable
  • Modulating (MO) or open/close (O/C)
  • 3x normally closed (NC)

« Back to Pneumatic control manifolds UGP1 G1 range

Data sheet UGP100064
