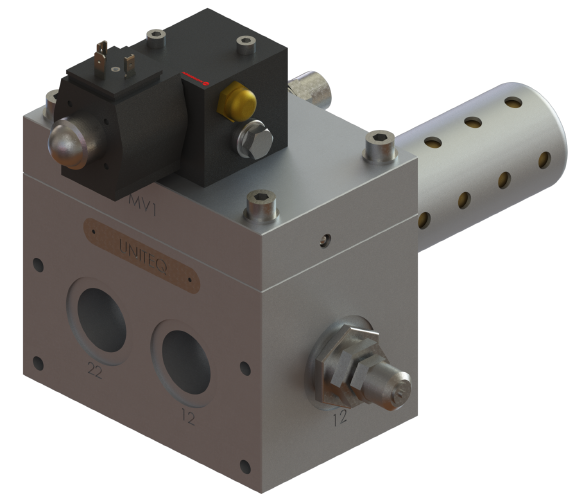

Pneumatic manifold G1-MO 1xNC-O/C 1xNC, modulating and quick open/close function for double acting actuator

Technical features
  • Suitable for double acting (DA) actuator
  • Fail safe open/close function (1x NC, power/signal loss)
  • Modulating (MO 1x NC) function
  • Open/close (O/C 1x NC) function
  • SIL2 certified according to IEC 61508
  • Operation pressure 0…10 bar (0…145psi)
  • Operation temperature -25°C -13°F / +70°C +158°F
  • Supplied medium air, filtered non-lubricated and dry
  • ATEX implementation suitable
  • Modulating (MO) and open close (O/C)
  • 1x normally closed (NC)

« Back to Pneumatic control manifolds UGP1 G1 range

Data sheet UGP100065
