UGP100066

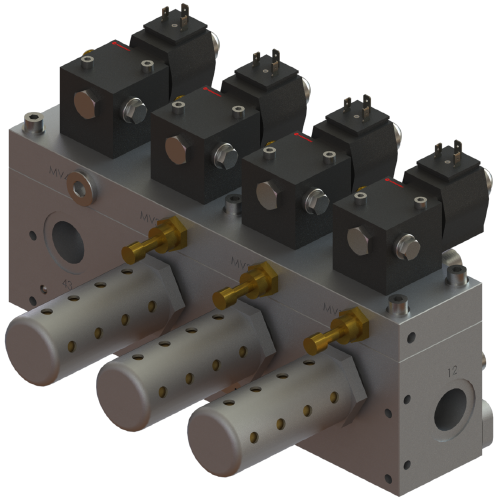

Pneumatic manifold G1-1oo3-MO 3xNC-O/C 1xNC, 1oo3 configuration wit quick open/close function and suitbale for (EN-1295-10 (TRD421) certification

Technical features
  • Suitable for single acting (SA) actuator
  • Fail safe open/close function, 1oo3 (3x NC, power/signal loss)
  • Modulating MO (3x NC, 1xNC) function
  • Quick open/close O/C (1x NC) function
  • SIL3 certified according to IEC 61508
  • Suitable for EN1295-10 (TRD421)
  • Internal connection prepared for lock-up function
  • Operation pressure 0…10 bar (0…145psi)
  • Operation temperature -25°C -13°F / +70°C +158°F
  • Supplied medium air, filtered non-lubricated and dry
  • Equipped with prepared lock-up valve connection (P/P1)
  • ATEX implementation suitable
Function
  • Modulating (MO) and open/close (O/C)
Configuration
  • 3x normally closed (NC)
  • 1x normally closed (NC)
